Pressure & Density Altitude Study Lab

Learn the concepts, check your math, and get every answer explained, straight from the PHAK and the FAA's density altitude pamphlet.

1. The five altitudes

  • Indicated altitude: what the altimeter shows.
  • True altitude: height above mean sea level (MSL).
  • Absolute altitude: height above ground level (AGL).
  • Pressure altitude: indicated altitude with the altimeter set to 29.92 "Hg.
  • Density altitude: pressure altitude corrected for nonstandard temperature.
FAA-P-8740-2, Density Altitude, "Types of Altitude"

2. The standard atmosphere (the "yardstick")

Everything is measured against the International Standard Atmosphere (ISA):

  • Sea level: 15 °C (59 °F) and 29.92 "Hg (1013.2 mb)
  • Temperature drops about 2 °C (3.5 °F) per 1,000 ft, up to 36,000 ft
  • Pressure drops about 1 "Hg per 1,000 ft, up to 10,000 ft

Anything different from these values is a nonstandard temperature or pressure. Aircraft instruments and performance charts are all calibrated to this standard. That's why we need corrections on a real day.

PHAK (FAA-H-8083-25C), Ch. 11, "Atmosphere" & Figure 11-2

3. Pressure altitude

Pressure altitude is the height above the standard datum plane (SDP), a theoretical level where pressure is 29.92 "Hg. As actual pressure changes, the SDP can be below, at, or above sea level.

Lower pressure than standard → the airplane "feels" higher → pressure altitude is ABOVE field elevation.
Higher pressure than standard → pressure altitude is BELOW field elevation.

PHAK gives three ways to find it:

  1. Set the altimeter to 29.92 "Hg and read the indicated altitude.
  2. Apply a correction to the field elevation based on the altimeter setting (Figure 11-3 table).
  3. Use a flight computer.

FAA example (Fig. 11-3): Field at sea level, altimeter setting 29.70. The table shows +205 ft, so pressure altitude is 0 + 205 = 205 ft.

Pressure altitude is the starting point for performance calculations. It's also how flight levels above 18,000 ft are assigned.

Quick cross-check using the lapse rate

Because pressure falls about 1 "Hg per 1,000 ft, (29.92 − altimeter setting) × 1,000 gives a close estimate. For 29.70 that's 0.22 × 1,000 ≈ 220 ft, close to the table's 205 ft. When you have the FAA table, use the table.

PHAK Ch. 11, "Pressure Altitude" & Figure 11-3

4. Density altitude

Density altitude is the altitude in the standard atmosphere where you'd find the air density you actually have today. The airplane performs as if it were at the density altitude, no matter what its real altitude is.

Step 1: find pressure altitude. Step 2: correct it for nonstandard temperature (chart or flight computer).
  • Hotter than standard → air expands → less dense → DA higher than PA
  • Colder than standard → denser → DA lower than PA
  • Exactly standard → DA equals PA

FAA example: Pressure altitude 5,000 ft, temperature 20 °C above standard. Density altitude comes out above 7,000 ft, and a 790 ft takeoff ground run grows to about 1,000 ft.

Tools the FAA gives you: the PHAK density altitude chart (Fig. 11-4), a flight computer, and the FAA-P-8740-2 rule-of-thumb chart. Those are what this site uses. You may have heard a "120 ft per degree" shortcut. It doesn't appear in these FAA documents, so this site doesn't teach it.

PHAK Ch. 11, "Density Altitude" & Figure 11-4

5. High, hot, and humid

Three things raise density altitude (thinner air): high elevation (plus low pressure), high temperature, and high humidity.

  • Pressure: density is directly proportional to pressure (at constant temperature).
  • Temperature: density varies inversely with temperature (at constant pressure).
  • Humidity: water vapor is lighter than air, so moist air is less dense than dry air.

The PHAK says there is no rule of thumb or chart for humidity's effect, but you must still consider it. FAA-P-8740-2 advises that if high humidity exists, add 10% to your computed takeoff distance and expect a reduced climb rate.

PHAK Ch. 11, "Effects of Pressure / Temperature / Humidity on Density"; FAA-P-8740-2 "High, Hot, and Humid"

6. What high density altitude does to you

Thin air reduces power (the engine takes in less air), thrust (the propeller is less efficient), and lift (less force on the wings). In the cockpit you'll see:

  • Increased takeoff distance
  • Reduced rate of climb
  • Same indicated airspeed (IAS) but higher true airspeed (TAS) on approach and landing
  • Increased landing roll

What to do about it:

  • Check the AFM/POH performance charts first. Use the Koch chart only if the AFM/POH isn't available.
  • Fly during cool hours (early morning or late afternoon).
  • Above 5,000 ft density altitude (or below 75% power), lean normally aspirated engines for maximum power on takeoff unless you have automatic altitude mixture control. Turbocharged engines don't need it.
  • Consider reducing weight.

Koch chart example: 100 °F at 6,000 ft pressure altitude means add 230% to takeoff distance and reduce climb rate by 76%. So 1,000 ft becomes 3,300 ft, and 500 fpm becomes 120 fpm.

PHAK Ch. 11, "Atmosphere"; FAA-P-8740-2 "Check the Charts Carefully" & "Koch Chart"

7. Reading the FAA test charts

The knowledge test hands you a figures booklet (FAA-CT-8080-2H). These are the charts it uses for density altitude and performance.

Figure 8: Density altitude chart

  1. Find the altimeter setting in the table on the right and apply its conversion factor to field elevation. That's pressure altitude. Positive factors add; negative factors subtract.
  2. Find the temperature on the bottom scale (use the °F row for °F, the °C row for °C) and go straight up to your pressure altitude line. Interpolate between lines.
  3. Go straight left and read density altitude.

The red line is standard temperature. On it, density altitude equals pressure altitude. Right of it (hotter) density altitude is higher. Left of it (colder) density altitude is lower.

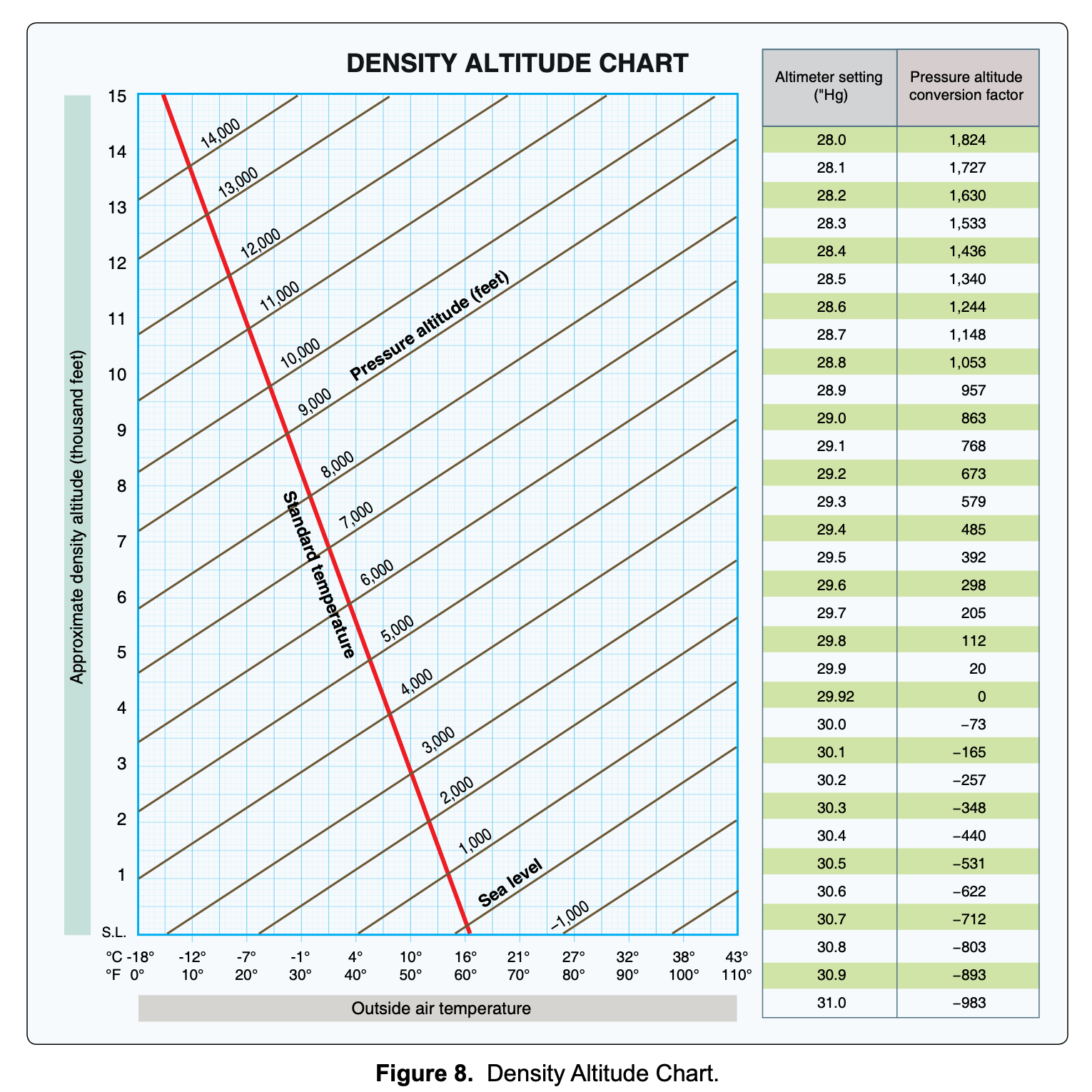

FAA-CT-8080-2H Figure 8, Density Altitude Chart
FAA-CT-8080-2H, Figure 8. Tap to enlarge.

Figure 38: Landing distance table

Pick the column for your pressure altitude, then apply the notes: −10% per 4 kts of headwind, +10% per 60 °F above standard, and for dry grass add 20% of the "total to clear 50 ft" figure to both distances.

Figures 37 and 40: Landing and takeoff graphs

Work left to right through each section. Start at the temperature, go up to the pressure altitude, then go right. At each reference line, follow the slanted guide lines to your weight, then your wind, then your obstacle height, and continue across. The red arrows on each chart show a worked example.

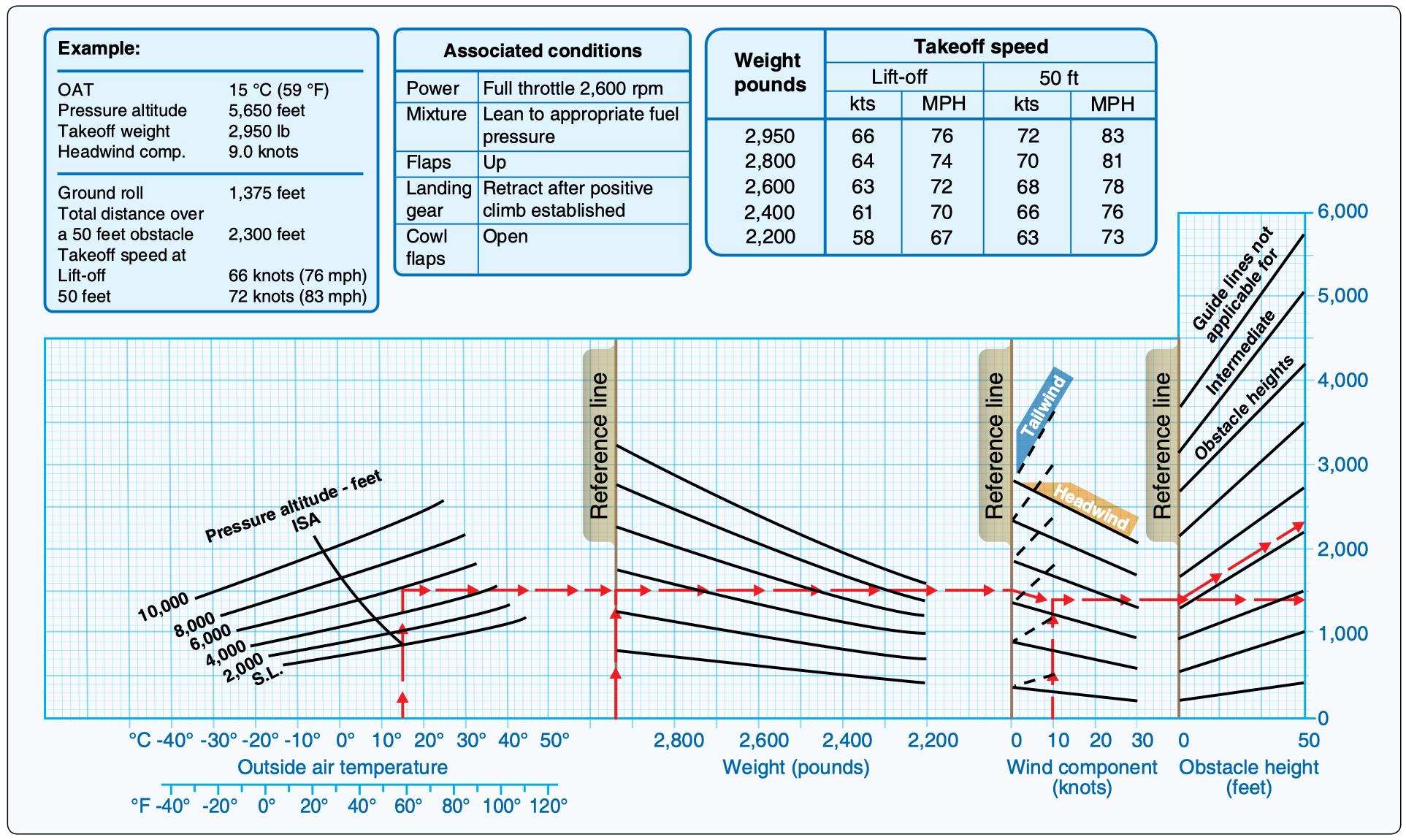

FAA-CT-8080-2H Figure 40, Airplane Takeoff Distance Graph
FAA-CT-8080-2H, Figure 40. Tap to enlarge.
FAA-CT-8080-2H, Figures 8, 37, 38, 40
